ECP Series

ECP Series Cartridges are manufactured from a special formulation of resin-impregnated cellulose and polyester fibers.

This unique blend of materials provides a higher wet strength than regular cellulose cartridges. It also provides high flow rates and dirt-holding capacity, while maintaining extremely low pressure drop.

The media is pleated around a polypropylene core for added strength. The pleated endcaps of the standard cartridges are immersed in a thermo-setting vinyl plastisol. The Big Blue cartridges have a molded endcap with gaskets. The pleated ends are sealed to the endcap with a thermoplastic adhesive. The overlap seam is sonically welded to reduce internal bypass, improving filtration efficiency.

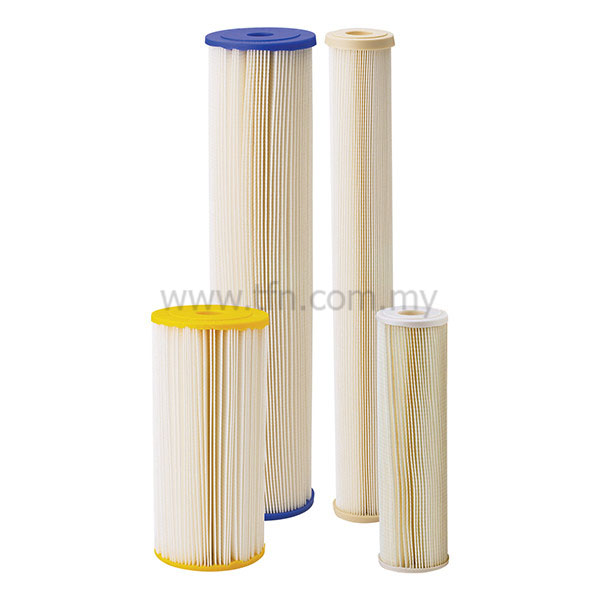

ECP Series Cartridge endcaps feature a color-coding system for easy identification of micron ratings: tan (1 micron), white (5 micron), blue (20 micron), and yellow (50 micron).

Features & Benefits:

• Replaces CP and HFCP Series cartridges
• Special formulation of resin-impregnated cellulose and polyester fibers
• Provides higher wet strength than regular cellulose cartridges
• Minimal unloading and media migration
• Nominal 1, 5, 20, 50 micron rating
• Lengths: 10", 20"
